Uniview / UNV / IP / 5MP / Bullet Camera / Motorized Varifocal / 2.8-12mm Lens / Outdoor / WDR / IP67 / WDR / 50m Smart IR / Auto Focus / 3 Year Warranty / UNV-2325SBR5-DPZ-F

Description
Reviews (0)

High quality image with 5MP, 1/3\”CMOS sensor
Ultra 265, H.265, H.264, MJPEG
120dB true WDR technology enables clear image in strong light scene
Alarm:1 in/1 out, Audio: 1 in/1 out
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
Call 1-800-878-6604 for Dealer Prices!

Technical Specification

Camera
Sensor	1/2.7\”, 5.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance – Lens 2.8mm – Detect (m)	63.1
DORI Distance – Lens 2.8mm – Observe (m)	25.2
DORI Distance – Lens 2.8mm – Recognize (m)	12.6
DORI Distance – Lens 2.8mm – Identify (m)	6.3
DORI Distance – Lens 12mm – Detect (m)	270.3
DORI Distance – Lens 12mm – Observe (m)	108.1
DORI Distance – Lens 12mm – Recognize (m)	54.1
DORI Distance – Lens 12mm – Identify (m)	27.0
Angle of View (H)	96.23~ 31.69
Angle of View (V)	69.98~ 24.28
Angle of View (O)	125.10~37.39
Adjustment angle	Pan: 0 ~ 360 Tilt: 0 ~ 90 Rotate:0 ~ 360
Shutter	Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
Defog	Digital Defog
IR Range	Up to 50m (164ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 5MP (25921944), Max 20fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream:4CIF (704576), Max 30fps; Third Stream: CIF (352288), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Flip	Normal/Vertical/Horizontal/180
Dewarping	NA
HLC	Support
BLC	Support
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O – Input:	impedance 35k; amplitude 2V [p-p]
Audio I/O – Output:	impedance 600; amplitude 2V [p-p]
Alarm I/O	1/1
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V25%, PoE (IEEE 802.3af)
Power consumption:	Max 9.5W
Dimensions (L W H)	240.3 86.4 75.6mm (9.5 3.4 3.0)
Net Weight	1.0kg (2.2lb)
Material	Metal
Working Environment	-30C ~ 60C (-22F ~ 140F), Humidity: 95% RH (non-condensing)
Strorage Environment	-30C ~ 60C (-22F ~ 140F), Humidity: 95% RH (non-condensing)
surge protection	6KV
Ingress Protection	IP67

Downloads
Data Sheet
Installation Guide
Quick Start Guide
User Manual

Optics

Day/night functionality

Smart IR, up to 50m (164ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

2D/3D DNR (Digital Noise Reduction)

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

ROI (Region of Interest)

Customized OSD

Network

ONVIF Conformance

Structure

Wide temperature range: -30C ~ 60C (-22F ~ 140F)

Wide voltage range of 25%

IP67

3-Axis

Smart IR
Smart IR and 2D/3D digital noise reduction are combined to show outstanding image quality. Two high-powered car-grade LEDs with Smart IR technology efficiently enhance IR compensation in completely dark scene. Meanwhile, DNR technology can widely utilize in static and movement scenes to reduce noise on images and display clear image under low light.

ONVIF COMPATIBILITY
If you want to add this camera to a security system already set up, thats no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means, as long as your current recorder is ONVIF compatible, youll be able to set this camera up with your current system.

Add a Review

Your email address will not be published. Required fields are marked *

Related Products

Sale

Uniview / UNV / Fixed Dome Junction Box / UNV-JB03-H

$15.00 $18.75

(5.0)

In Stock

Sale

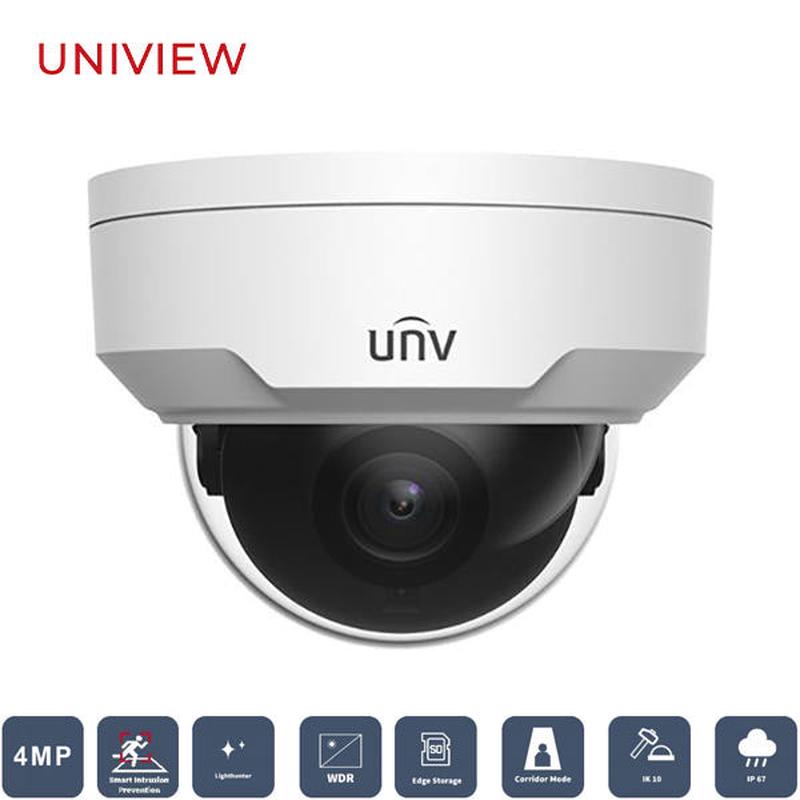

Uniview / UNV / IP / 4MP / Dome Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / IK10 / 30m Smart IR / Intelligent / LightHunter / 3 Year Warranty / UNV-324SB-DF28K-I0

$58.05 $116.10

(5.0)

In Stock

Sale

Uniview / UNV / IP / 4MP / PTZ Dome Camera / Motorized Varifocal / 4.8 ~ 120mm Lens / Outdoor / WDR / IP67 / 100m Smart IR / LightHunter / Auto Focus / Two-Way Audio / 3 Year Warranty / UNV-6424SR-X25

$150.00 $669.00

(5.0)

In Stock

Sale

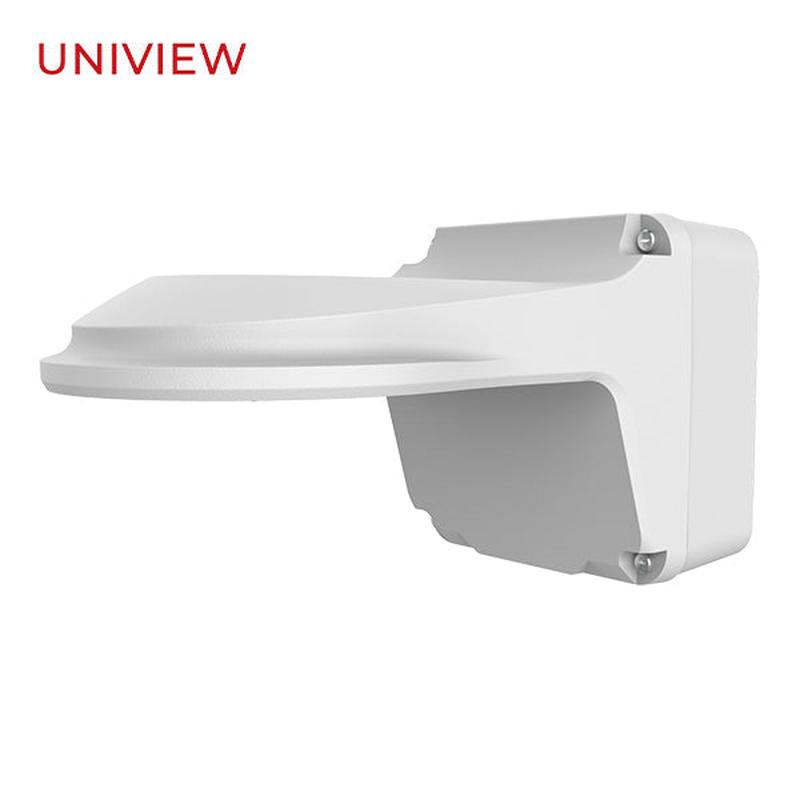

Uniview / UNV / Fixed Dome Outdoor Wall Mount / UNV-JBWM-Combo
