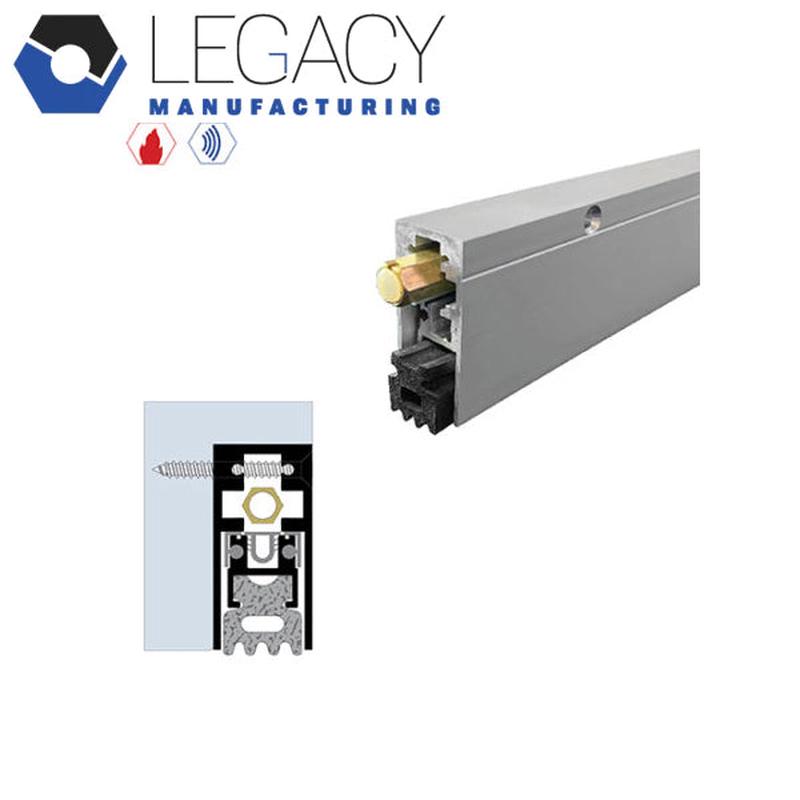

Legacy Manufacturing – 7263 – Semi-Mortised Automatic Door Bottom – 29/32\” x 1-15/16\” – Clear Anodized Aluminum – Optional Length

COMPETITOR EQUIVALENT

FINISHES

• CA Clear Anodized
• DB Dark Bronze Anodized
• MB Matte Black Powder Coat
• WP White Powder Coat

OPTIONS

• EA Electrical Actuator
• FL Fire Label
• LS Light Spring
• PULL Pull
• PV Pivot Doors
• SF Security Fasteners
• SL Sliding Doors
• TD Top Door Installation
• MB-EC Matte Black End Cap

FEATURES

• Can be made any size from 12\” to 144\”.
• Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
• 5 million cycles tested.

MATERIALS / SPECIFICATIONS

• Sponge Rubber Extrusion is Black
• Aluminum is Clear Anodized
• Screws are standard (#8 x 1-1/2\” SMS self-drilling screws) supplied
• Brass Hex Nut
• Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
• Self-leveling door seal up to maximum 1\” drop.
• Replacement closed cell sponge neoprene Part #4363SPR
• Unit supplied standard with 1 pair of end caps Part #4163EC-AP.
