Jonard Tools – Wire Wrapping Bit – 20-22 AWG | Wire Wrap Tools

Description
Reviews (0)

Fully compatible with any make or model of wire wrapping tools, this 3\” wire wrapping bit is perfect for wrapping 20-22 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

Compatible Wrap Sleeve Part No.: P2224, P2224INS

Specifications

Sleeve Part No.	P2224 and P2224INS (sold separately)
Wrap Function	Wrap
Wrap Type	Regular
Wire Gauge	20-22 AWG (0.80 mm – 0.65 mm)
Minimum Terminal Diagonal	0.042\” (1.07 mm)
Maximum Terminal Diagonal	0.073\” (1.85 mm)
Terminal Hole Depth	1\” (25.4 mm)
Terminal Hole Diameter	0.075\” (1.9 mm)
Effective Radius	0.123\” (3.12 mm)
Wrap Post Size	0.045\” (1.14 mm)
Dimensions	3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm)
Weight	0.02 lb (7.264 g)
UPC #	811490013377

Downloads:

Spec Sheet

Add a Review

Your email address will not be published. Required fields are marked *

Related Products

Sale

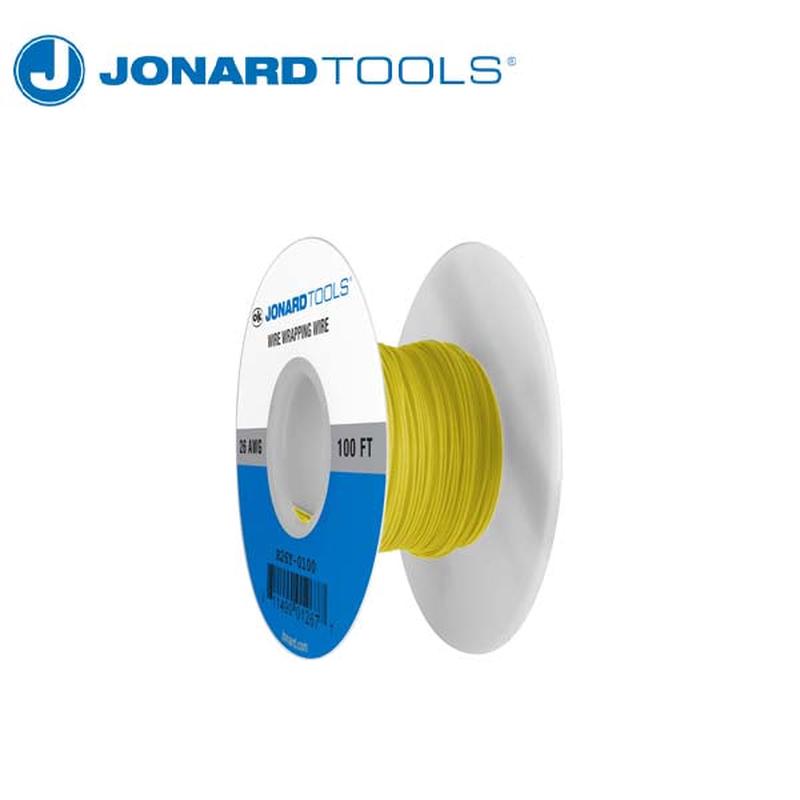

Jonard Tools - 26 AWG Kynar Wire - Optional Finish - 100 ft
